RB橡膠鞋底生產機組
| 型號Model | 產品圖片Photo | 品名DESCRIPTION | 尺寸Dimension(LXWXH)(mm) | 重量Weight(kg) | 數量QTY |
|---|---|---|---|---|---|
| X(S)N-75 |  |
75L密煉機 | 3900x2900x3400 | 9500 | 1 |
| XK-450 |  |
18寸開煉機 | 5000x2200x2000 | 10500 | 1 |
| XK-400 |  |
16寸開煉機 | 4400x2000x1900 | 9000 | 1 |
| SX-WF-3800-10 |  |

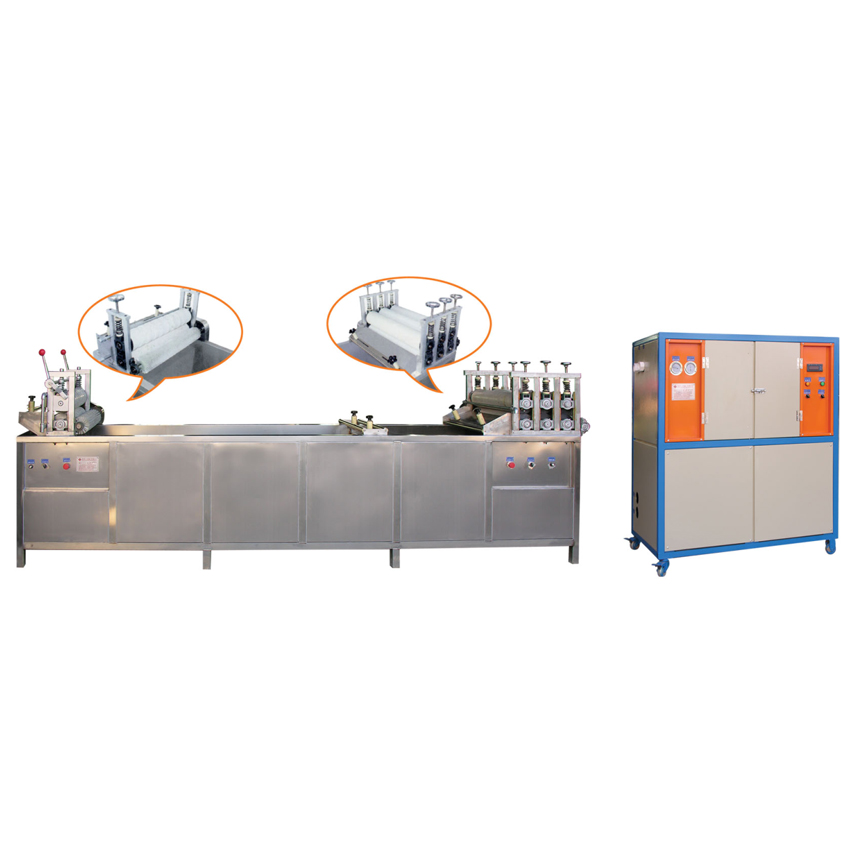

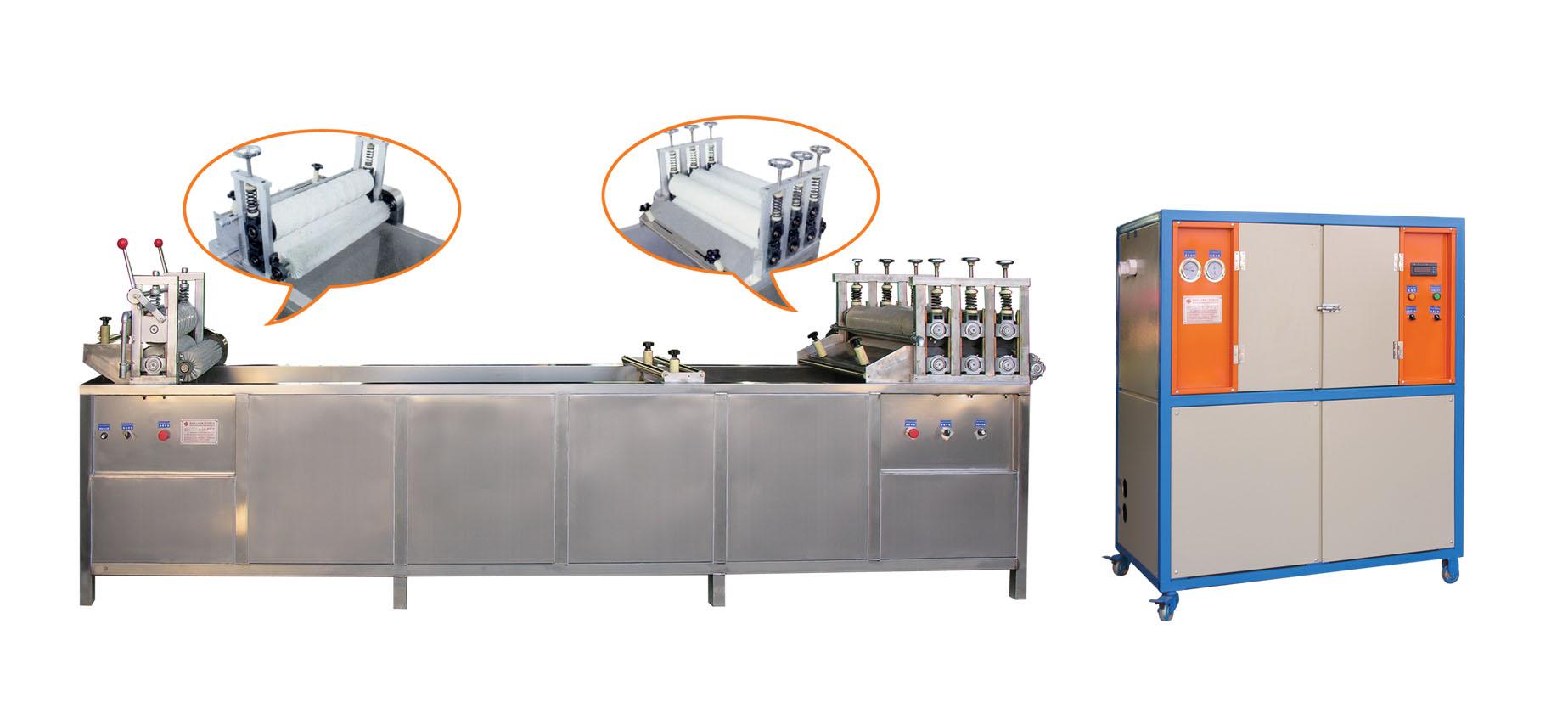

10P過水機 | 3800x950x1430 | 900 | 1 |
| SX-WF-3800-15 |  |
15P過水機 | 3800x950x1430 | 900 | 1 |
| SX-PC-600 |  |

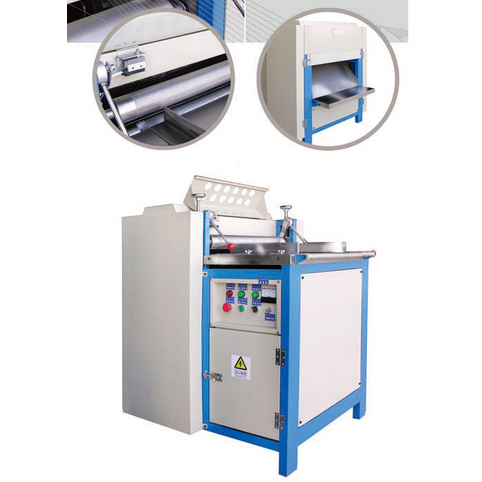

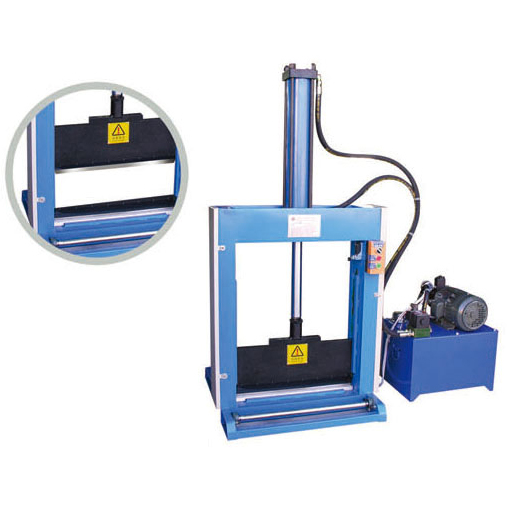

切膠機 | 820*760*1670 | 250 | 1 |
| SX-RCA-08 |  |
切條機 | 1200x1000x1200 | 350 | 1 |
| SX-AFD-100 |  |

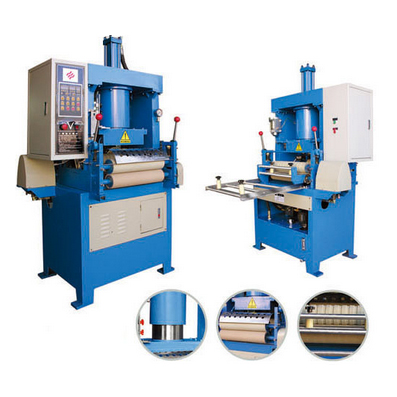

自動沖床 | 850x1120x2030 | 1000 | 1 |
Production process
Operation video
